Via Segrè 11/a 43122 Parma (I) (PR) Fax +39 (0)521-606278 +39 (0)521-606285 sr@salvatorerobuschi.com

01- RD (RDB-RDL-RDM)

Centrifugal pumps with closed impeller built according to ISO 2858-5199 norms.

Details

02- RG (RGB-RGL-RGM)

Centrifugal pumps with open impeller built according to ISO 2858-5199 norms.

Details

03- RC (RCB-RCL-RCM)

Centrifugal pump with vortex impeller in according to ISO 5199 norm.

Details

04- RB (RBB-RBL-RBM)

Centrifugal pumps with channel impeller according to ISO 5199 norm.

Details

05- HD (HDM-HDA)

Centrifugal pumps with closed impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

06- HG (HGM-HGA)

Centrifugal pumps with semi-open impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

07- RS (RSM-RSA)

Centrifugal pumps with vortex impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

08- RN (RN-RNM-RNL)

Centrifugal pumps with closed impeller built in compliance with DIN 24255.

Details

09- TS (TS-TSK-TSL)

Multistage centrifugal pumps with closed impeller.

Details

10- RAM (RAMD-RAME)

Double-stage with peripheral impeller pumps.

Details

11- RACM

Multistage self-priming pumps.

Details

12- VERTICAL PUMPS

Vertical centrifugal pumps with closed, open, vortex and channel impeller according to ISO 5199 norm

Details

13- CANTILEVER PUMPS

Vertical cantilever centrifugal pumps with vortex and channel impeller.

Details

14- RE (REB-REL-REM)

Centrifugal pumps with open multichannel impeller according to ISO 5199 norm

Details

15- VS (VSB-VSL-VSM)

Single-stage liquid ring vacuum pumps

Details
View all products

Vertical Pumps

RS Pumps

RG Pumps

RD Pumps

RC Pumps

RB Pumps

Process Pumps Range Execution

Process Pumps Features

Mechanical Seal Execution

HG Pumps

HD Pumps

Cantilever Pumps

View all videos

    Technical Specifications

    Maximum flow rate: 500 m3/h
    Maximum head: 50 mwc
    Maximum pressure: 10 bar
    Maximum temperature: 220° C

    Materials

    Standard: AISI 316 - Cast Iron GJL250.
    On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy.

    Hydraulic

    Multichannel open impeller

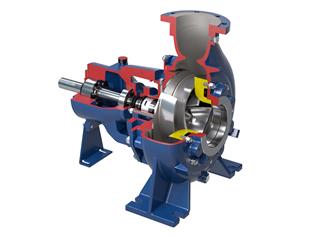

    RE Pumps

    Simple and modular construction with bearing bracket in according to ISO 5199 norm. Discharge sizes from DN 80 to DN 125. Impeller with special blades geometry for low NPSH and high free passage. Heavy duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrengement.

    Use

    Handling slightly contaminated liquids in waste-water treatment plants, paper pulp up to 8%, sugar industry, fertilizer, viscous liquids in evaporators of food or chemical industry, refineries, general industrial service, food industry, sea water desalination plants, power stations, steel industries.
    Open configuration for conveying liquids containing non-abrasive suspended solids, viscous liquids, liquids with suspended crystals. Multi-Channel geometry helps maintain the liquid flow and prevent clogging. Low NPSH.

    Construction Versions

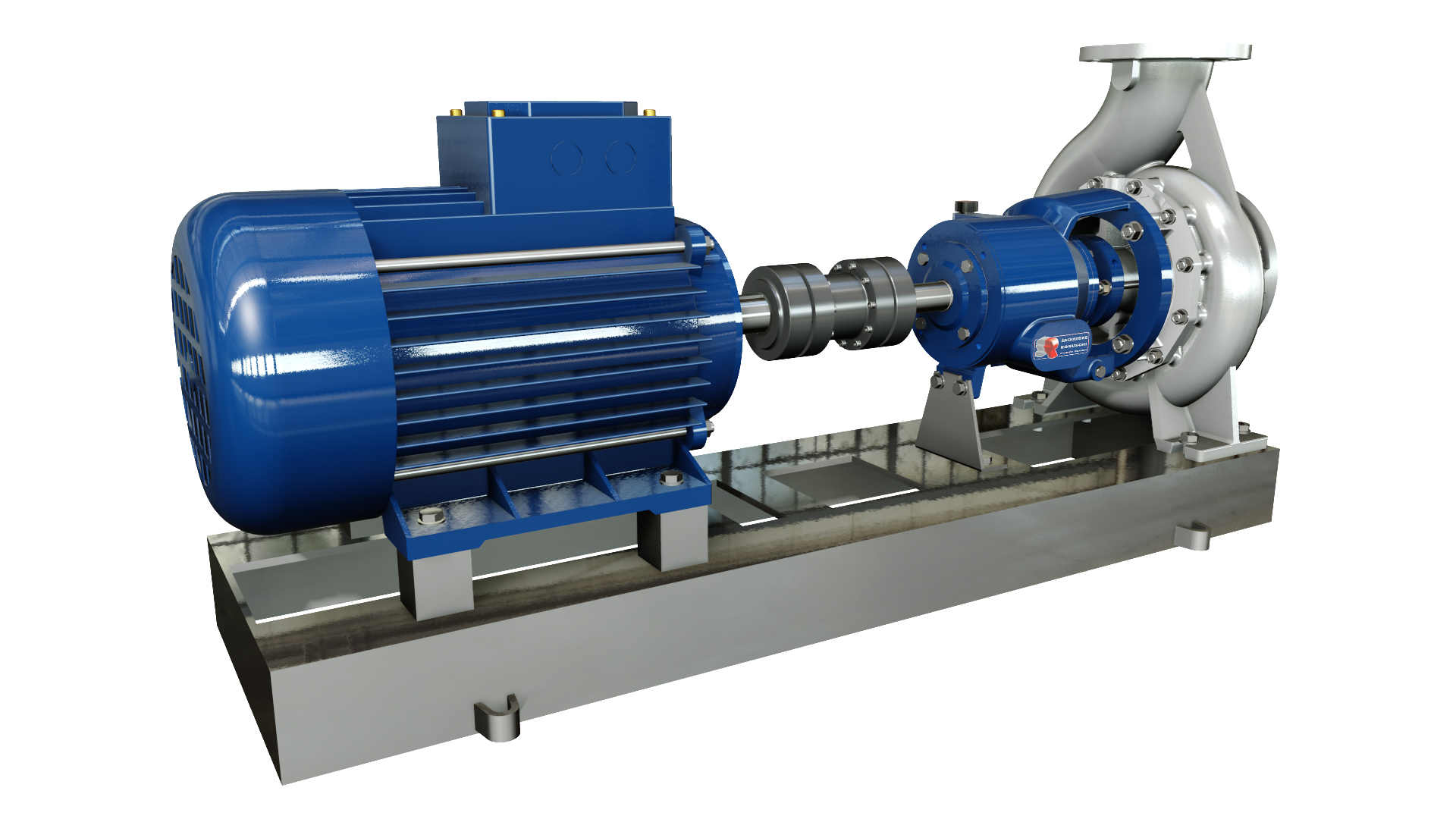

    REB: Independent frame with oil lubricated bearings.

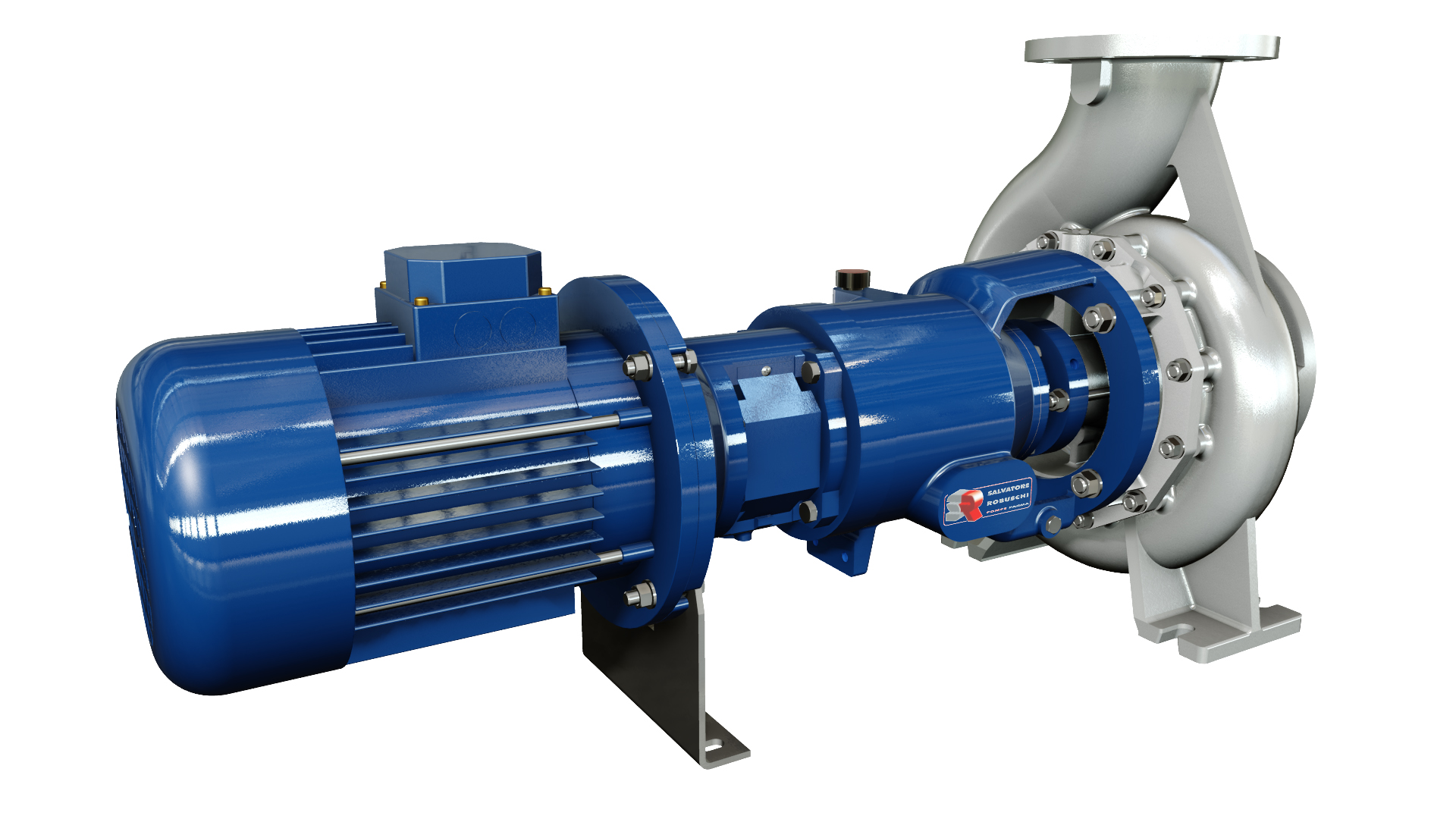

    REL: Lantern bracket with flex coupling and standard B5 motor.

    Unions

    Standard: UNI EN 1092-1 PN 10
    On request: ANSI 150
    50Hz Curves
    60Hz Curves
    Dimensions
    Cross Sections
    Manuals
    Others
    Catalogues
