01- RD (RDB-RDL-RDM)

Centrifugal pumps with closed impeller built according to ISO 2858-5199 norms.

Details

02- RG (RGB-RGL-RGM)

Centrifugal pumps with open impeller built according to ISO 2858-5199 norms.

Details

03- RC (RCB-RCL-RCM)

Centrifugal pump with vortex impeller in according to ISO 5199 norm.

Details

04- RB (RBB-RBL-RBM)

Centrifugal pumps with channel impeller according to ISO 5199 norm.

Details

05- HD (HDM-HDA)

Centrifugal pumps with closed impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

06- HG (HGM-HGA)

Centrifugal pumps with semi-open impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

07- RS (RSM-RSA)

Centrifugal pumps with vortex impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

08- RN (RN-RNM-RNL)

Centrifugal pumps with closed impeller built in compliance with DIN 24255.

Details

09- TS (TS-TSK-TSL)

Multistage centrifugal pumps with closed impeller.

Details

10- RAM (RAMD-RAME)

Double-stage with peripheral impeller pumps.

Details

11- RACM

Multistage self-priming pumps.

Details

12- VERTICAL PUMPS

Vertical centrifugal pumps with closed, open, vortex and channel impeller according to ISO 5199 norm

Details

13- CANTILEVER PUMPS

Vertical cantilever centrifugal pumps with vortex and channel impeller.

Details
View all products

Vertical Pumps

RS Pumps

RG Pumps

RD Pumps

RC Pumps

RB Pumps

Process Pumps Range Execution

Process Pumps Features

Mechanical Seal Execution

HG Pumps

HD Pumps

Cantilever Pumps

View all videos

Technical Specifications

Maximum flow rate: 500 m3/h
Maximum head: 140 mwc
Maximum pressure: 16 BAR
Maximum temperature: 220° C

Materials

Standard: AISI 316.
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy B and C.

Hydraulic

Closed impeller

RD pumps

Simple and modular construction ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 125. High hydraulic efficiencies and low NPSH value (investment casting impellers). Heavy duty shaft and bearings. Only 3 bearing brackets for the whole range. Only 1 casing cover fits every seal arrengement.

Use

RD pumps can handle aggressive organic and inorganic liquids in the chemical and petrochemical industries. They are also used in sea water desalination plants, absorption equipment in environmental engineering, power stations, steel industry and hot water distribution.

Construction Versions

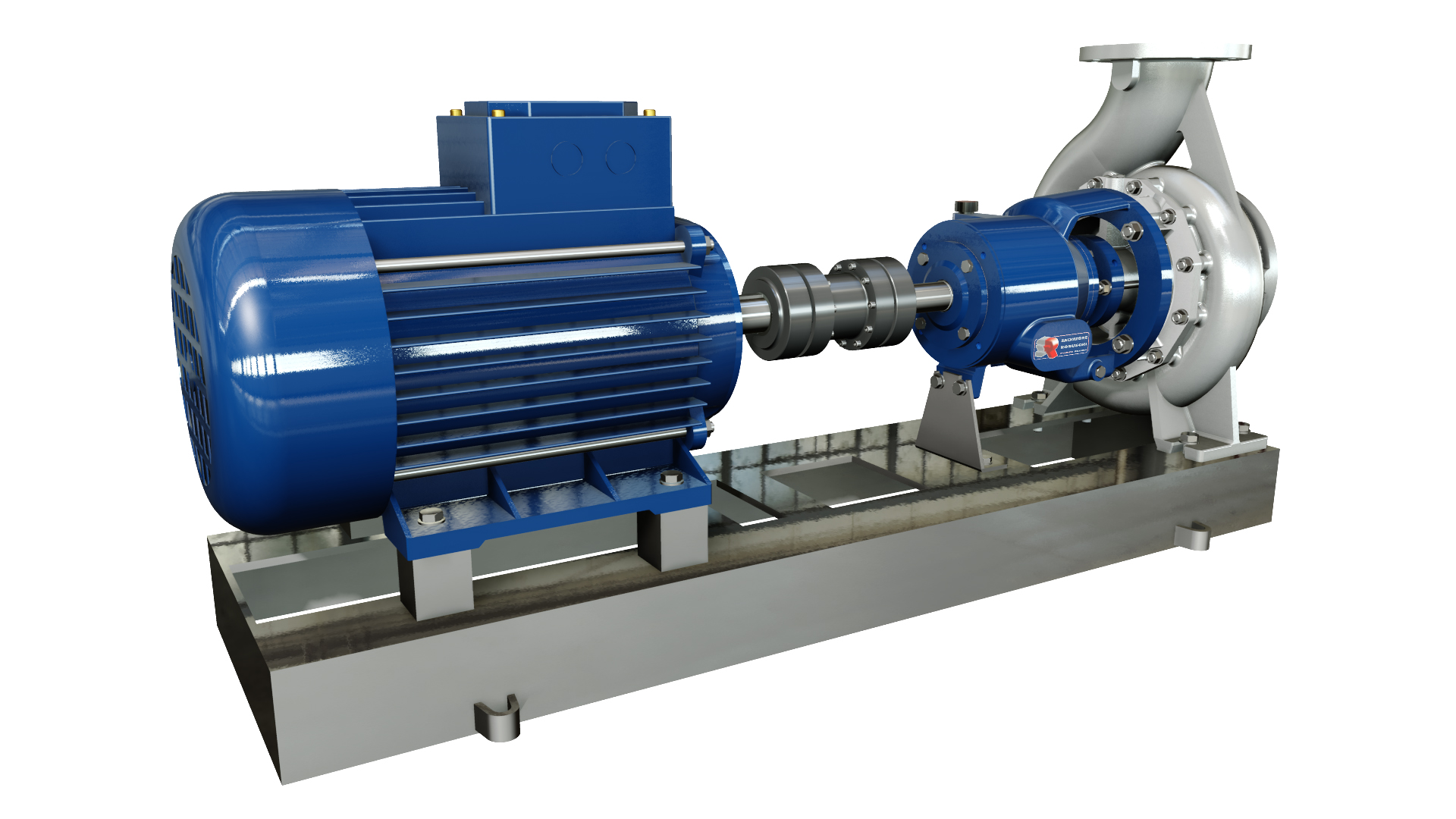

RDB: Independent frame with oil lubricated bearings.

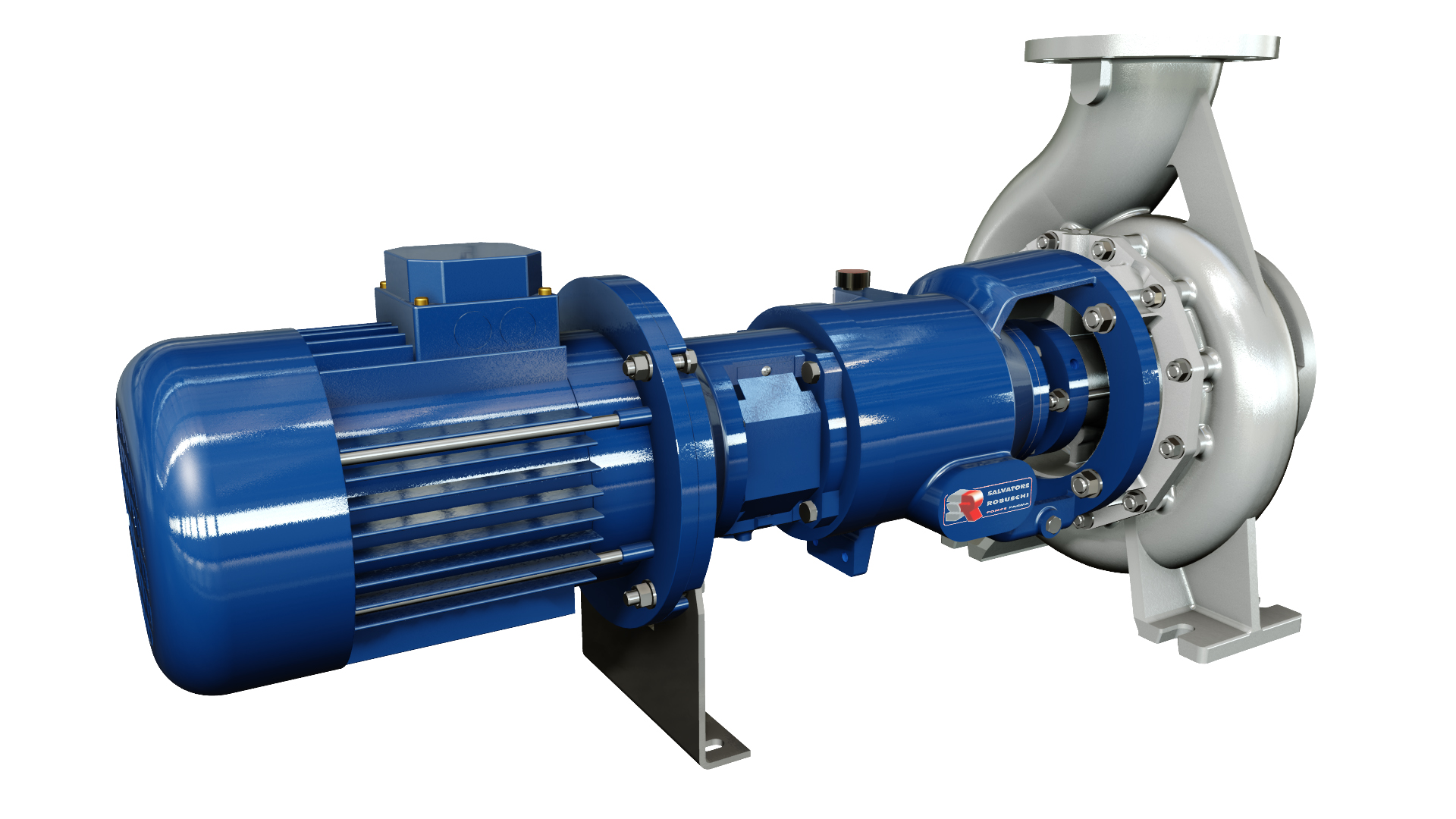

RDL: Lantern bracket with flex coupling and standard B5 motor.

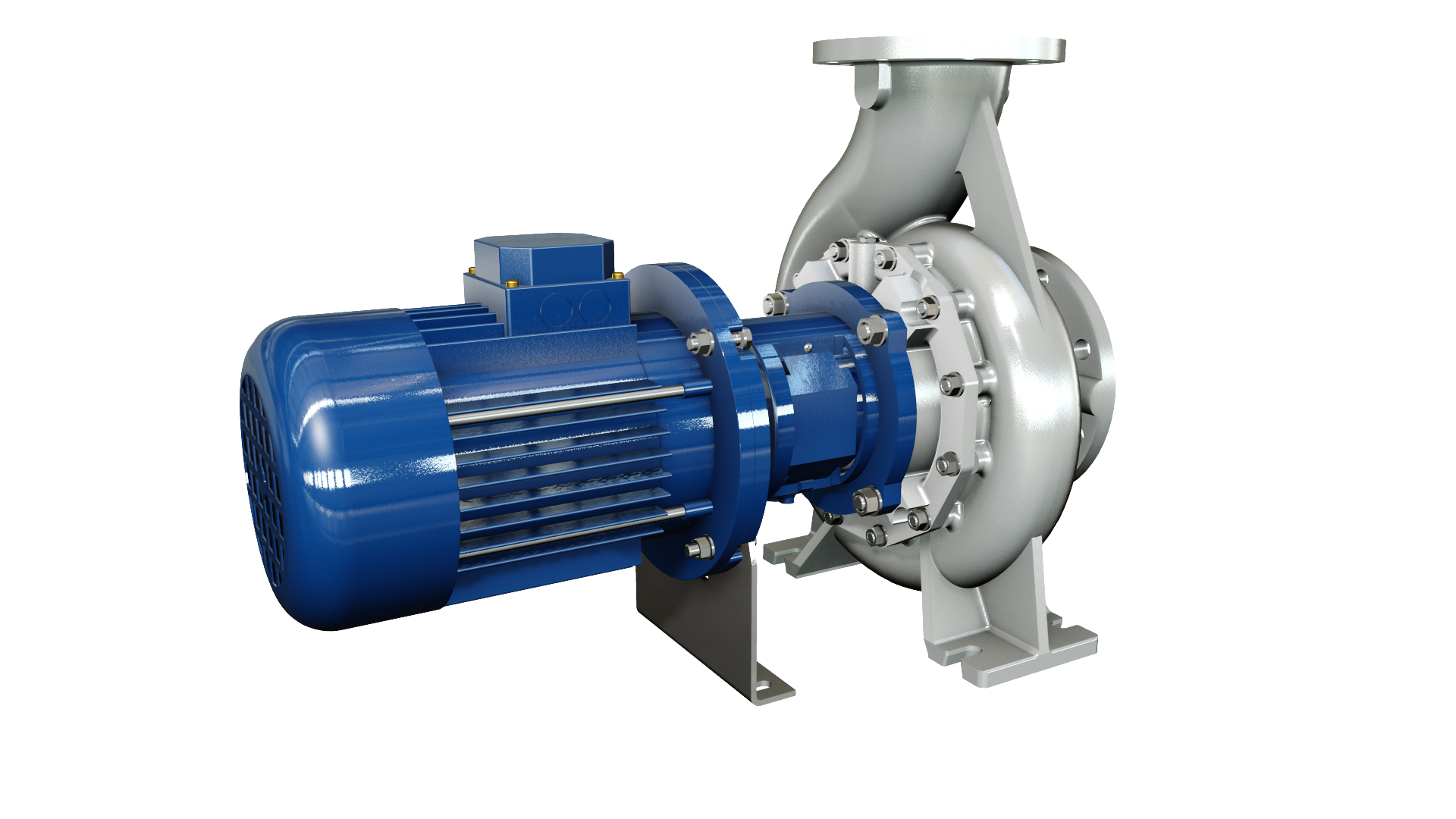

RDM: Close-Coupled with standard B5 electric motor.

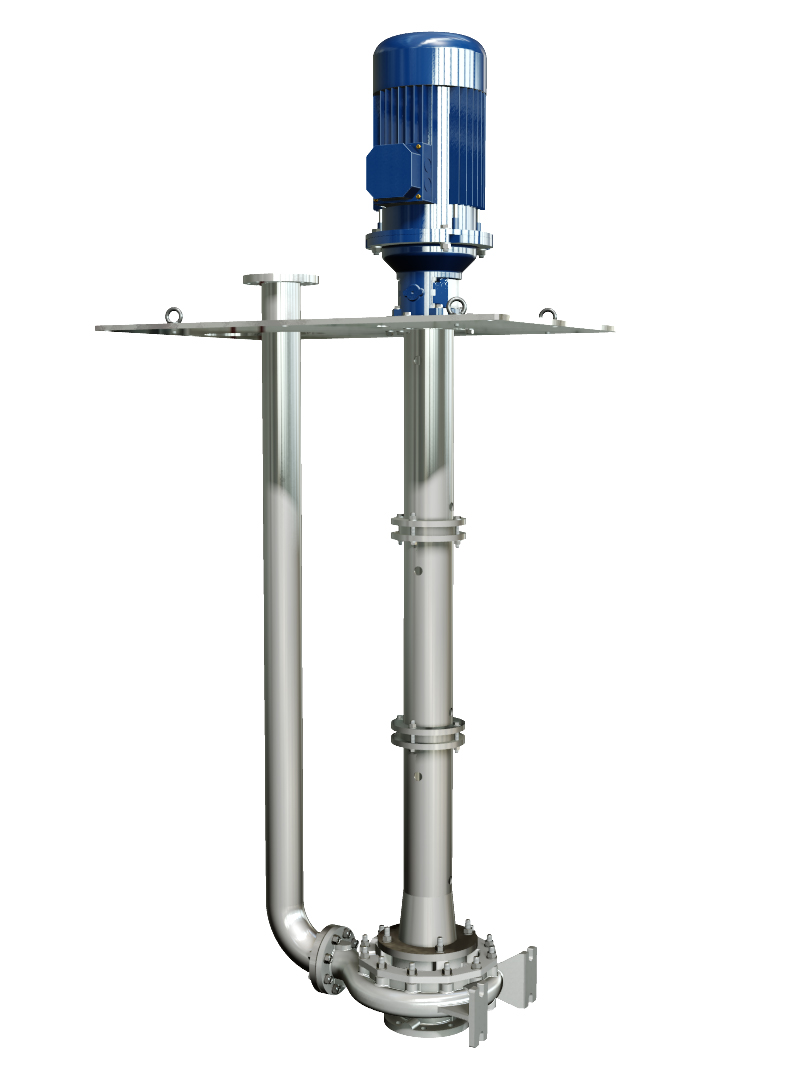

RDV: Vertical column.

Unions

Standard: UNI EN 1092-1 PN 16
On request: ANSI 150
50Hz Curves
60Hz Curves
Dimensions

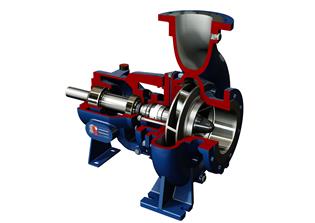

Cross Sections
Manuals
Others
Catalogues
