Technical Specifications

Maximum flow rate: 200 m3/h
Maximum head: 60 mwc
Maximum pressure: 8 BAR
Maximum temperature: 120° C

Materials

Standard: AISI 316

Hydraulic

Closed impeller

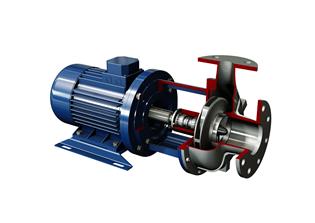

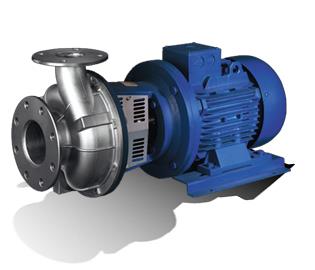

HD pumps

HD pumps have the same interaxis of ISO 2858 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.

Use

HD pumps can handle aggressive organic and inorganic liquids in chemical industries. They are also used in general industrial service, foodstuff industry, water/solvent recovery process, power stations, steel industry and small evaporator plants.

Construction Versions

HDM - HDA: Close-Coupled with standard B5 electric motor.

Unions

Series HDM: Flanged unions UNI PN 16
Series HDA: DIN 11851 unions (food applications)
50Hz Curves
60Hz Curves
Dimensions
Cross Sections
Manuals
Others
Catalogues
