Technical Specifications

Maximum flow rate: 480 m3/h
Maximum head: 90 mwc
Maximum pressure: 10 BAR
Maximum temperature: 130° C


Standard: GJL200 Cast Iron with AISI 430 or AISI 316 shaft and Cast Iron GJL200 or BRASS according to the pump size.


Closed impeller

RN pumps

Centrifugal pumps with closed impeller according to EN 733 norms. Discharge sizes from DN 32 to DN 150.


RN pumps can handle clean and non-aggressive liquids for the pump materials (contents of solids up to 0,2% max). They are also used for non aggressive industrial liquids, water supply, heating, conditioning, cooling and circulation plants, civil and industrial applications, fire-fighting plants and irrigations.

Construction Versions

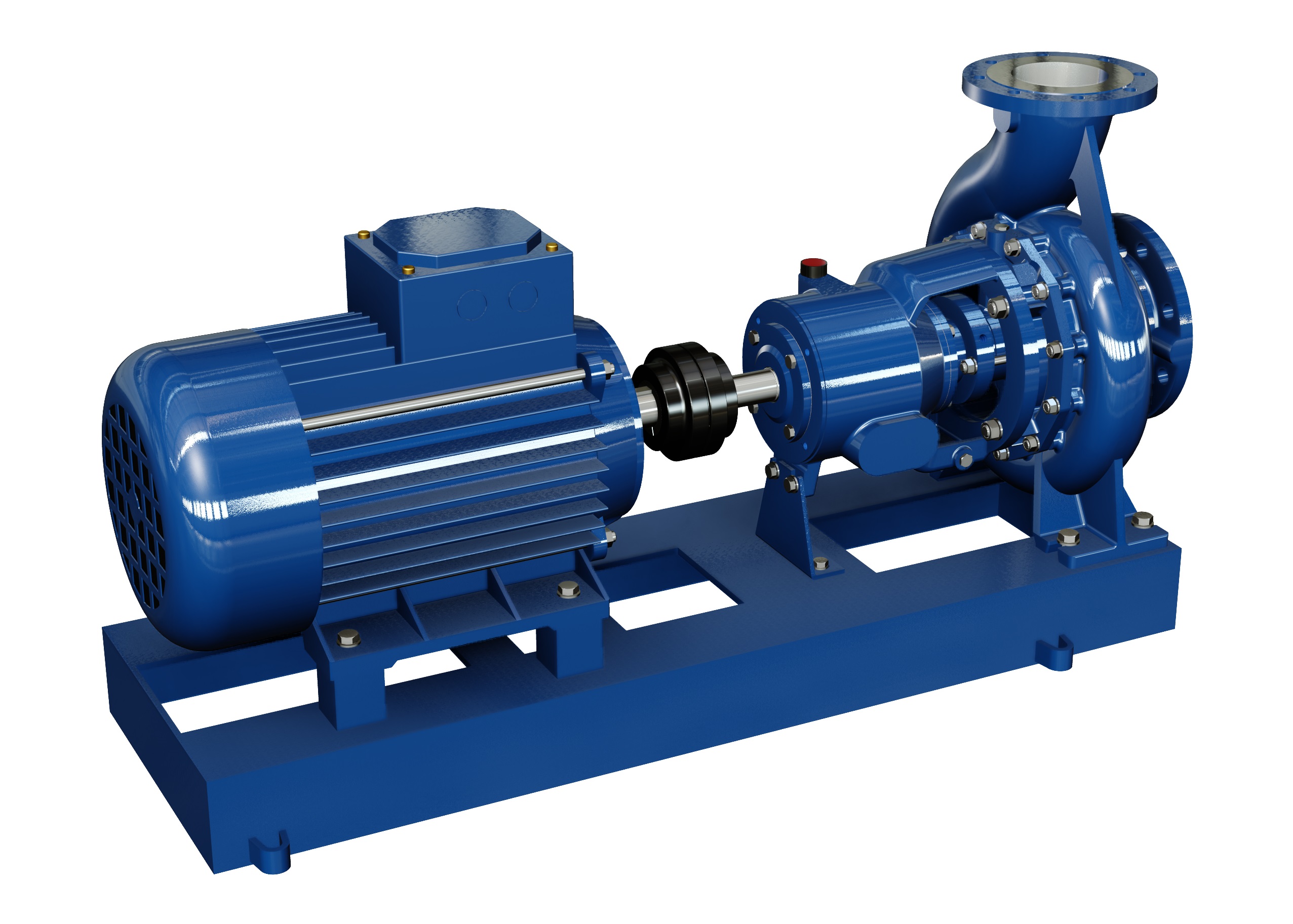

RNB: Independent frame with oil lubricated bearings.

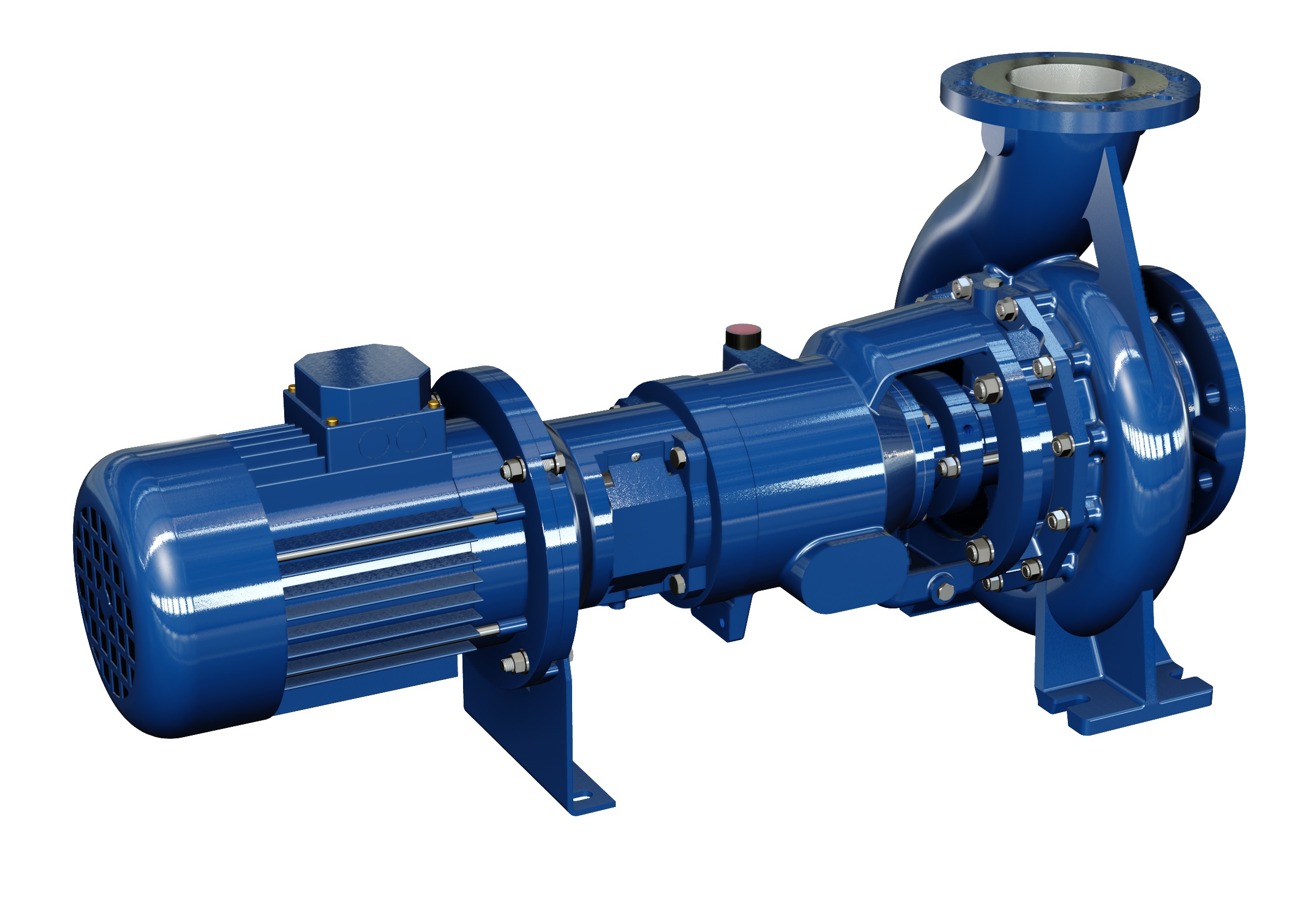

RNL: As above with lantern for coupling to flanged motors.

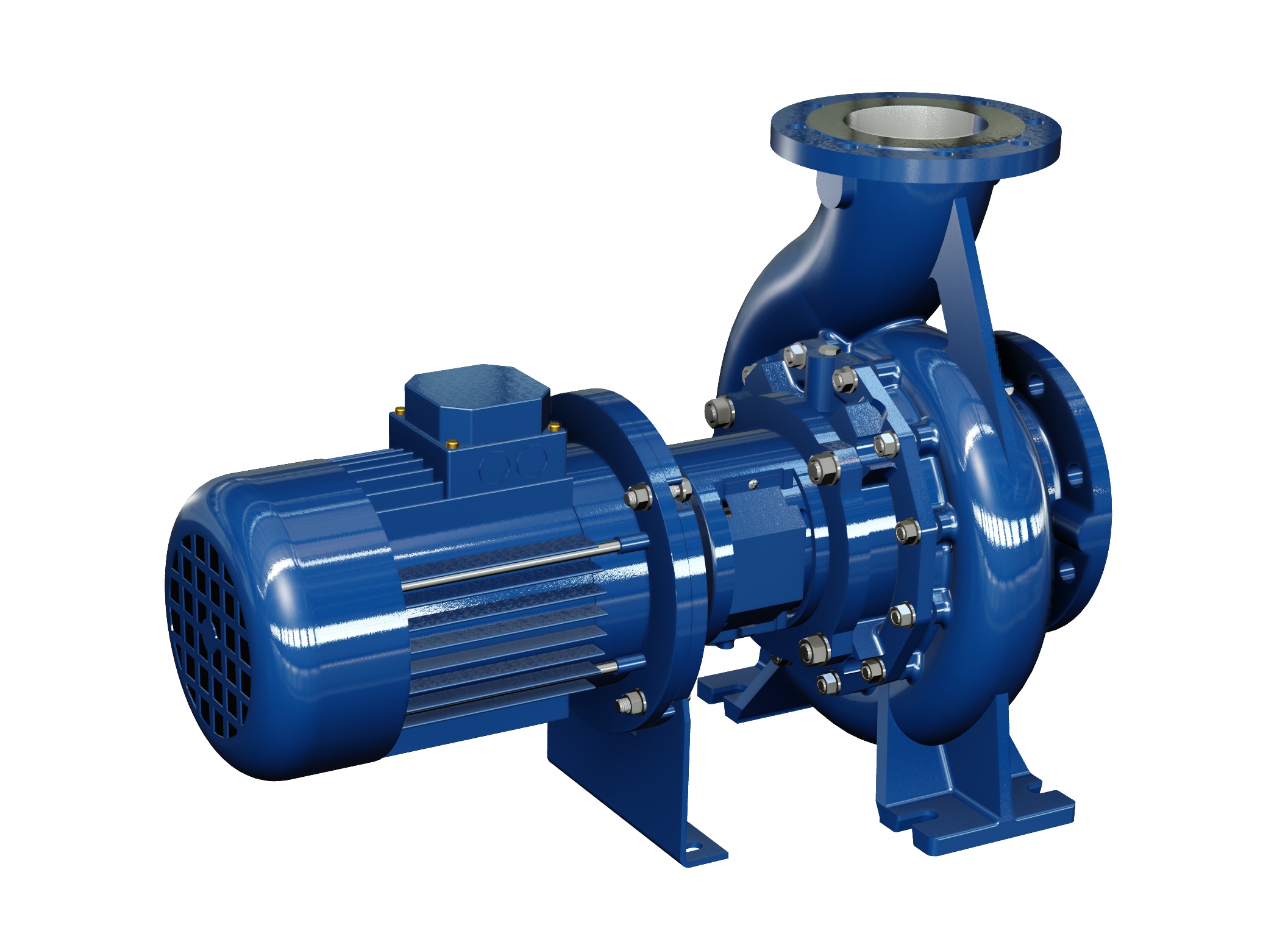

RNM: Close-Coupled with electric motor.

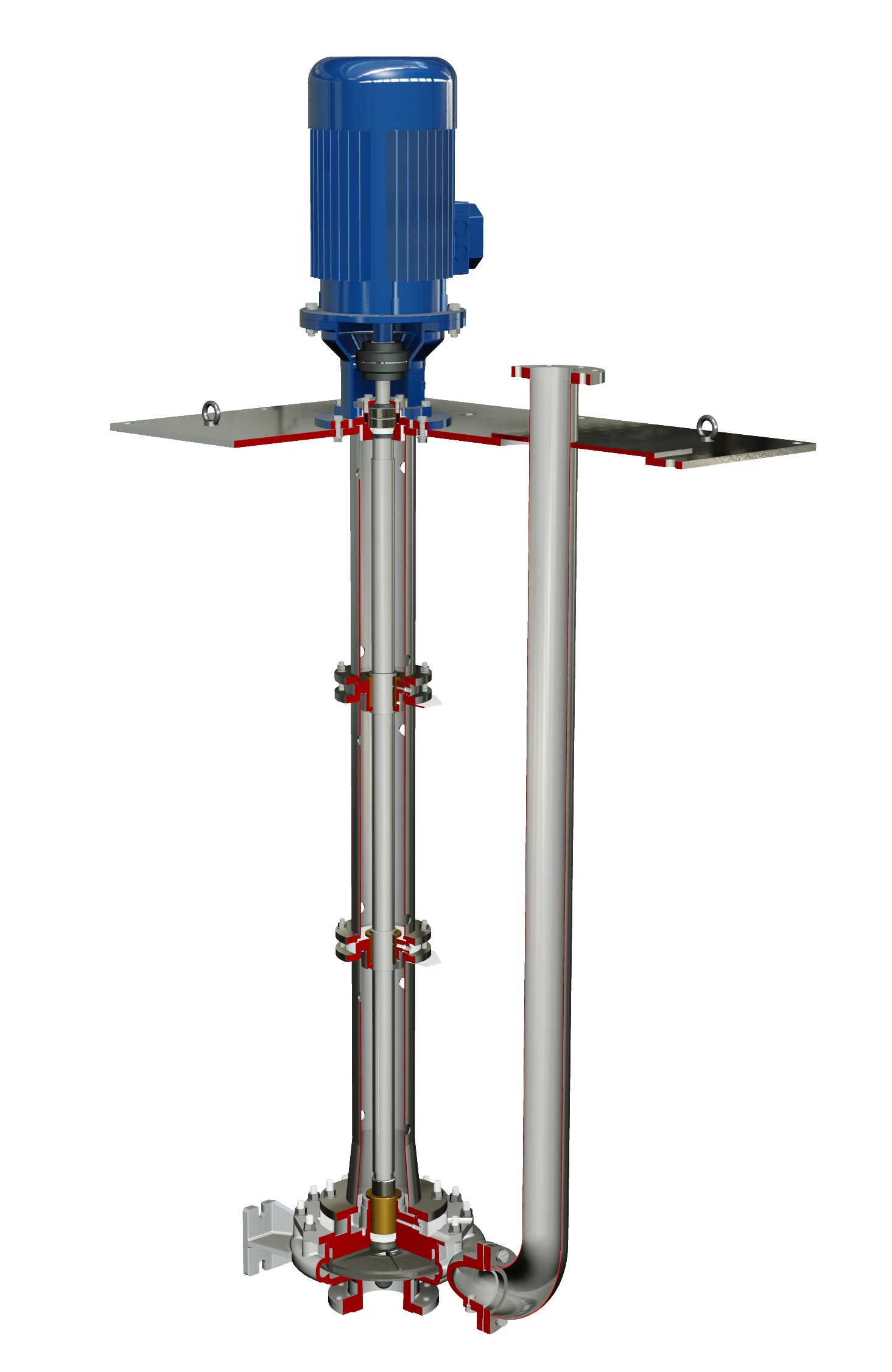

RNV: Vertical column.


Standard: UNI EN 1092-2 PN 10
50Hz Curves
60Hz Curves

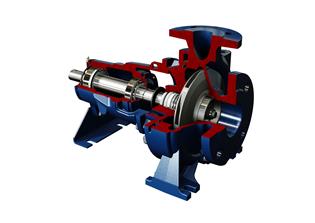

Cross Sections
