Technical Specifications

Maximum flow rate: 6,3 m3/h
Maximum head: 180 mwc
Maximum pressure: 25 BAR
Maximum temperature: 120° C

Materials

Standard: Casing and diffusers made in GJL250 Cast Iron, shaft in AISI 420 and impeller in BRASS or AISI 316 on request.

Hydraulic

Peripheral impeller

RAM pumps

Double-stage centrifugal pumps with peripheral impellers TS. Discharge sizes DN 25.

Use

RAM pumps can handle clean liquids without solid parts in suspension. They are also used for boilers feeding, flotation plants in waste water treatment and whenever low capacity and high pressure are required.

Construction Versions

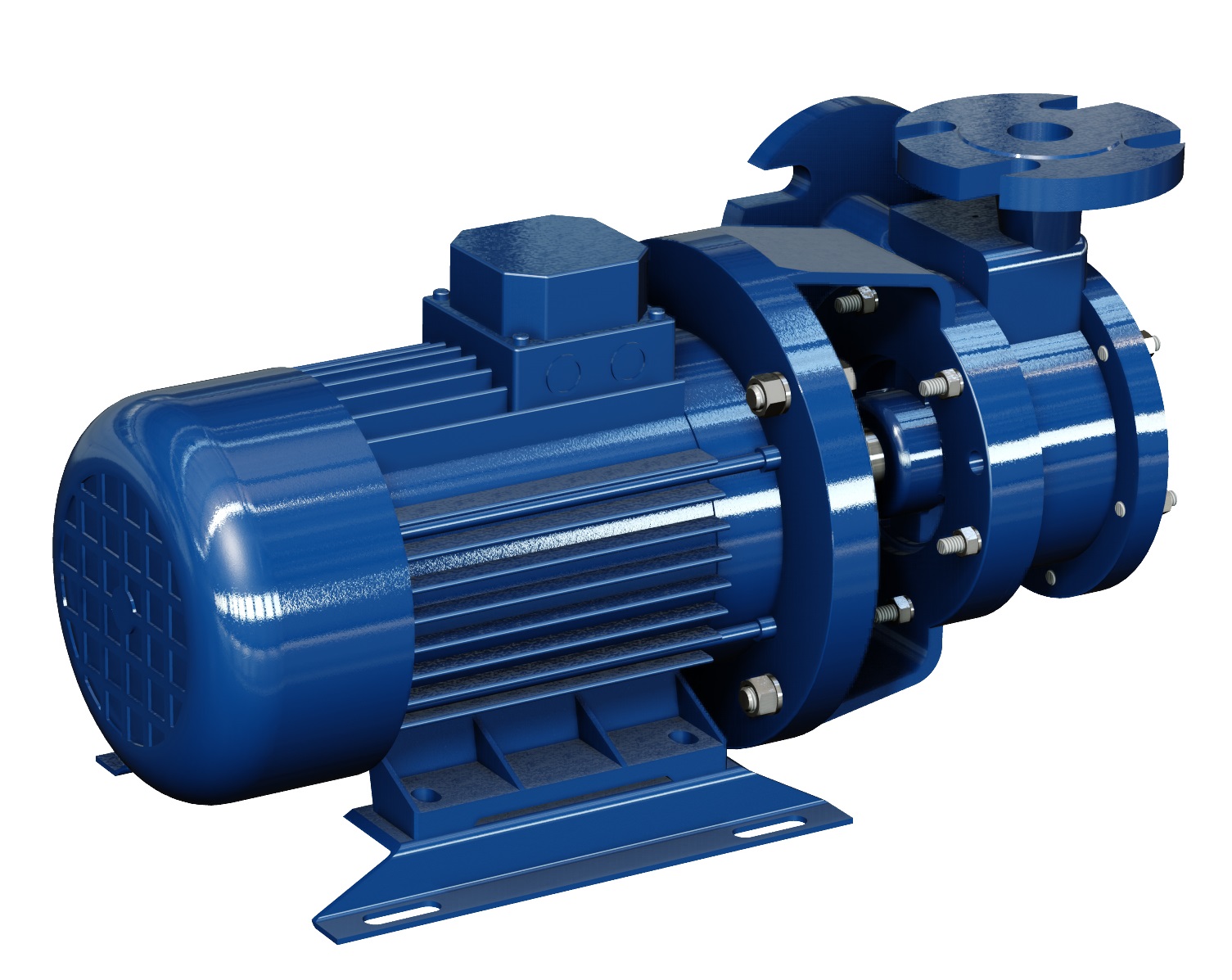

RAMD: Close-Coupled with electric motor.

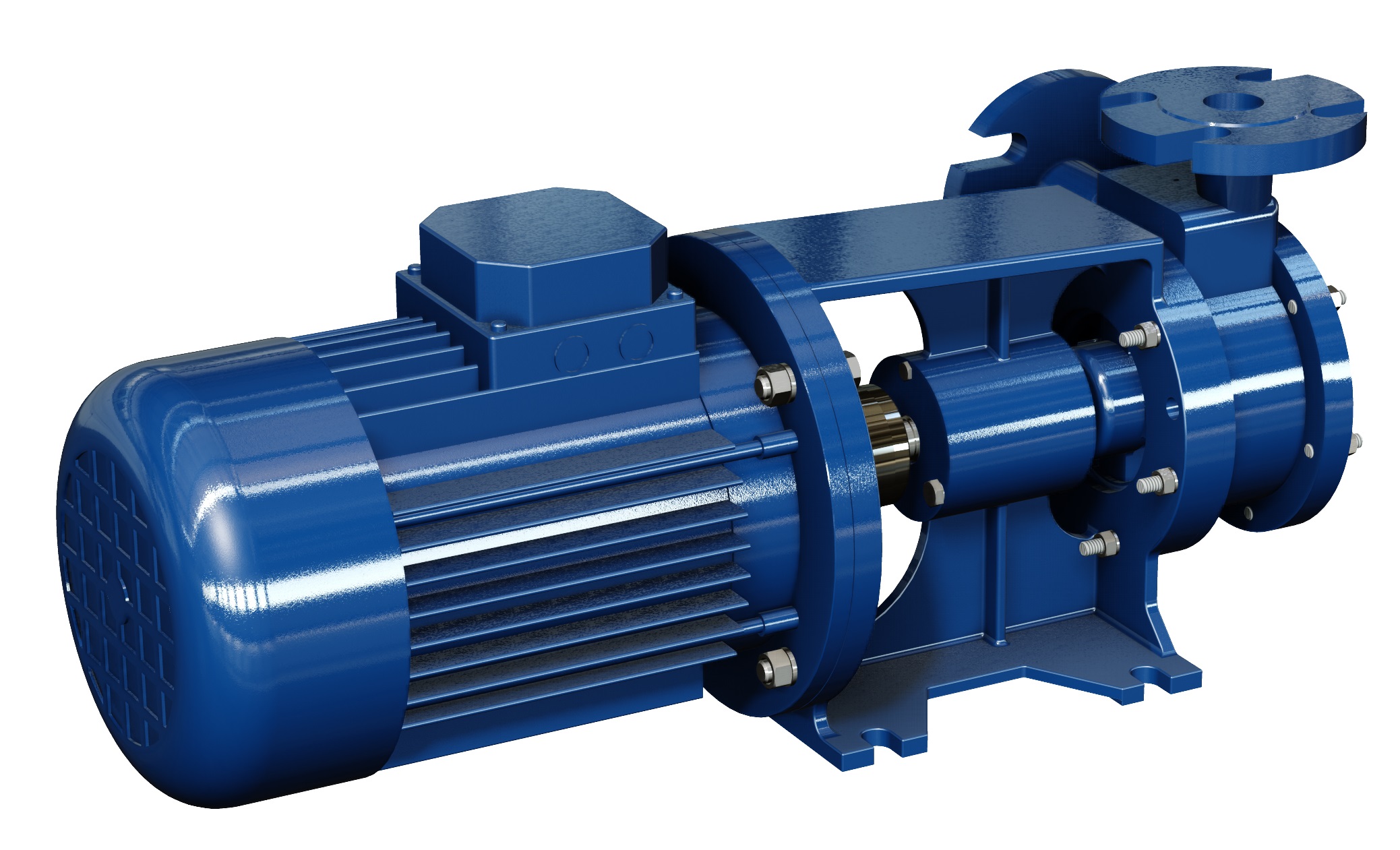

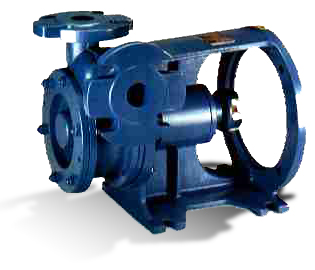

RAME: Independent frame with oil lubricated bearings with lantern for coupling to flanged motors.

Unions

Standard: PN 25
50Hz Curves
60Hz Curves
Dimensions

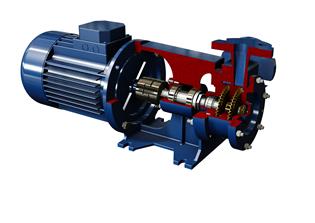

Cross Sections
Manuals
Catalogues
