Technical Specifications

Maximum flow rate: 200 m3/h
Maximum head: 60 mwc
Maximum pressure: 8 BAR
Maximum temperature: 120° C


Standard: AISI 316.


Open impeller

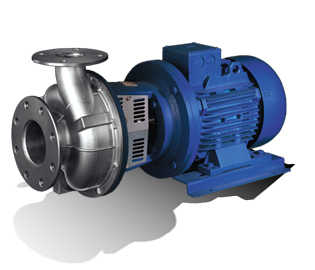

HG pumps

HG pumps have the same interaxis of ISO 5199 chemical norm pumps, this means easy interchangeability. Casing and impeller manufactured with investment casting technology. Standard IEC motor (different brand available) with stub shaft design. Possibility to choose seal arrangement: single, bouble tandem, double back to back and packing gland.


HG pumps can handle slightly contaminated liquids or non abrasive slurries in the chemical and petrochemical industries; well suited for handling liquids with gas contents up to 10%. They are also used in general industrial service, foodstuff industry, dissolved air flotation systems, sugar industry, water/solvent recovery process, power stations, steel industry, textile and small evaporator plants.

Construction Versions

HGM - HGA: Close-Coupled with standard B5 electric motor.


Series HGM: Flanged unions UNI PN 16
Series HGA: DIN 11851 unions (food applications)
50Hz Curves
60Hz Curves

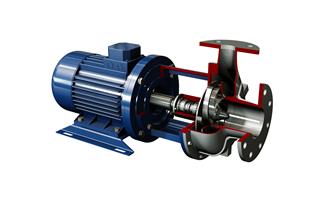

Cross Sections
