01- RD (RDB-RDL-RDM)

Centrifugal pumps with closed impeller built according to ISO 2858-5199 norms.

Details

02- RG (RGB-RGL-RGM)

Centrifugal pumps with open impeller built according to ISO 2858-5199 norms.

Details

03- RC (RCB-RCL-RCM)

Centrifugal pump with vortex impeller in according to ISO 5199 norm.

Details

04- RB (RBB-RBL-RBM)

Centrifugal pumps with channel impeller according to ISO 5199 norm.

Details

05- HD (HDM-HDA)

Centrifugal pumps with closed impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

06- HG (HGM-HGA)

Centrifugal pumps with semi-open impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

07- RS (RSM-RSA)

Centrifugal pumps with vortex impeller. Flanges unions PN 16 or DIN 11851 (food industry).

Details

08- RN (RN-RNM-RNL)

Centrifugal pumps with closed impeller built in compliance with DIN 24255.

Details

09- TS (TS-TSK-TSL)

Multistage centrifugal pumps with closed impeller.

Details

10- RAM (RAMD-RAME)

Double-stage with peripheral impeller pumps.

Details

11- RACM

Multistage self-priming pumps.

Details

12- VERTICAL PUMPS

Vertical centrifugal pumps with closed, open, vortex and channel impeller according to ISO 5199 norm

Details

13- CANTILEVER PUMPS

Vertical cantilever centrifugal pumps with vortex and channel impeller.

Details

14- RE (REB-REL-REM)

Centrifugal pumps with open multichannel impeller according to ISO 5199 norm

Details

15- VS (VSB-VSL-VSM)

Single-stage liquid ring vacuum pumps

Details
View all products

Vertical Pumps

RS Pumps

RG Pumps

RD Pumps

RC Pumps

RB Pumps

Process Pumps Range Execution

Process Pumps Features

Mechanical Seal Execution

HG Pumps

HD Pumps

Cantilever Pumps

View all videos

Technical Specifications

Maximum flow rate: from 40 to 1600 m3/h
Vacuum pressure: from 800 to 33mbarA

Materials

  • Execution 1: Cast iron G200 + G400
  • Execution 2: Cast iron G200 + AISI 316 SS (CF8M)
  • Execution 3: AISI 316 SS (CF8M)

Hydraulic

Single stage

VS Pumps

The VS Series features a single-stage pump with exhaust valves and is available in the following configurations: close-coupled, lantern bracket with coupling, or mounted on a baseplate for motor sizes above 11 kW. The close-coupled and lantern bracket configurations feature standardized IEC motors, ensuring easier maintenance. The pumps are manufactured in various materials and are always equipped with an SS AISI 316L distribution plate.
The new VS series incorporates innovative solutions to enhance the reliability and usability of the pumps, with special attention given to optimizing service liquid consumption.

Use

VS pumps are the perfect choice for applications in industries such as chemical (distillation, drying), food & beverage (degassing, evaporation, vacuum cooking), pulp & paper, power generation (condenser air extraction), and plastics (extruder degassing).

Operational simplicity and a non-contacting design make these liquid ring pumps an extremely reliable and safe solution, ideal for handling contaminated or potentially hazardous gas streams.

Construction Versions

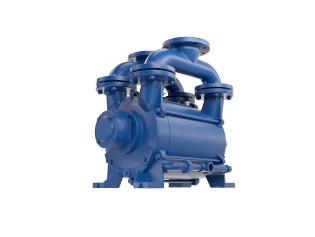

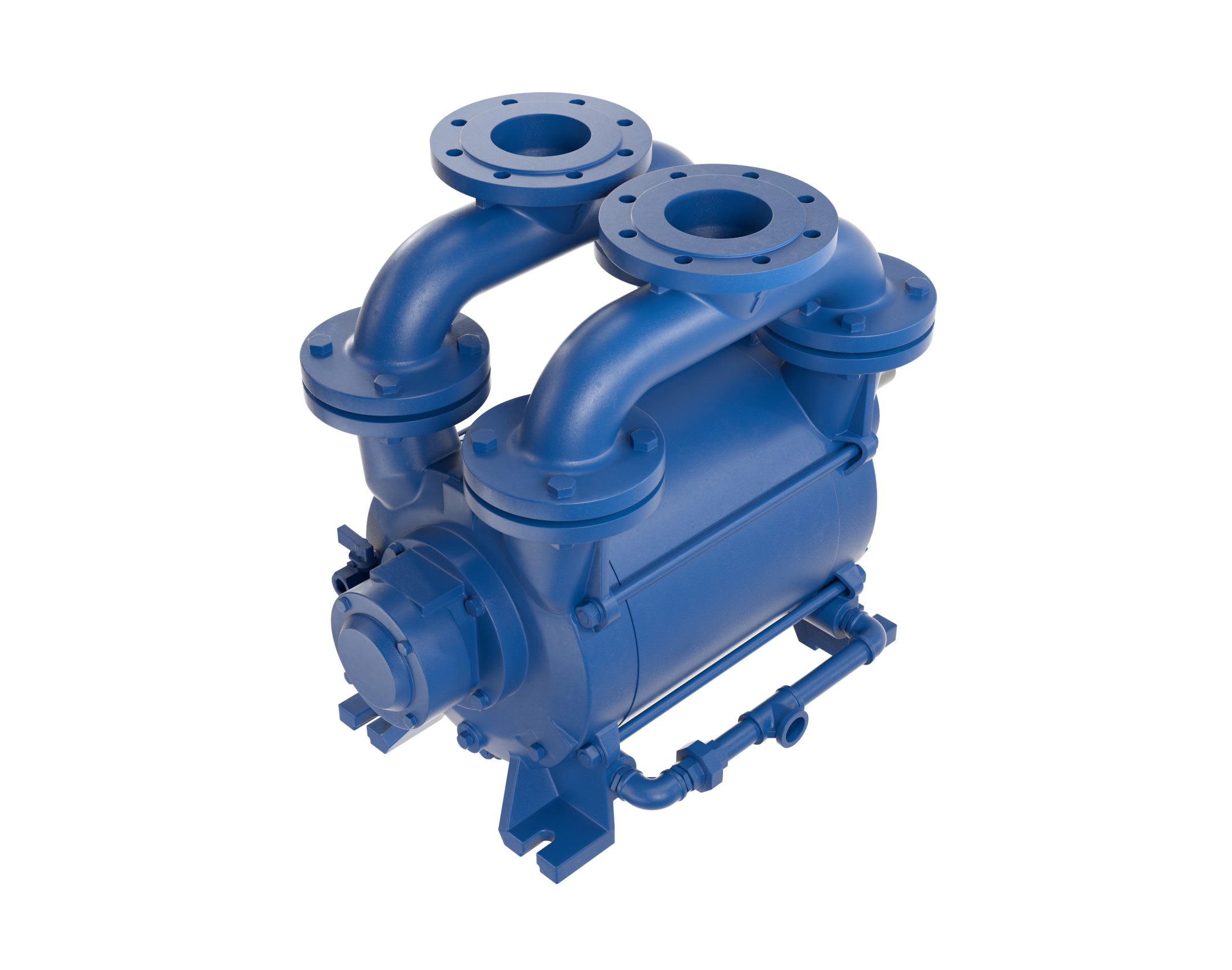

VSB: Double-end shaft support for enhanced stability with grease lubricated bearings and protective lip seals

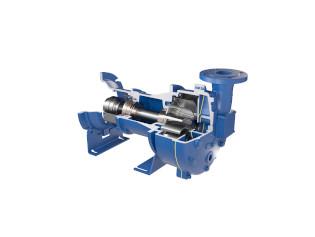

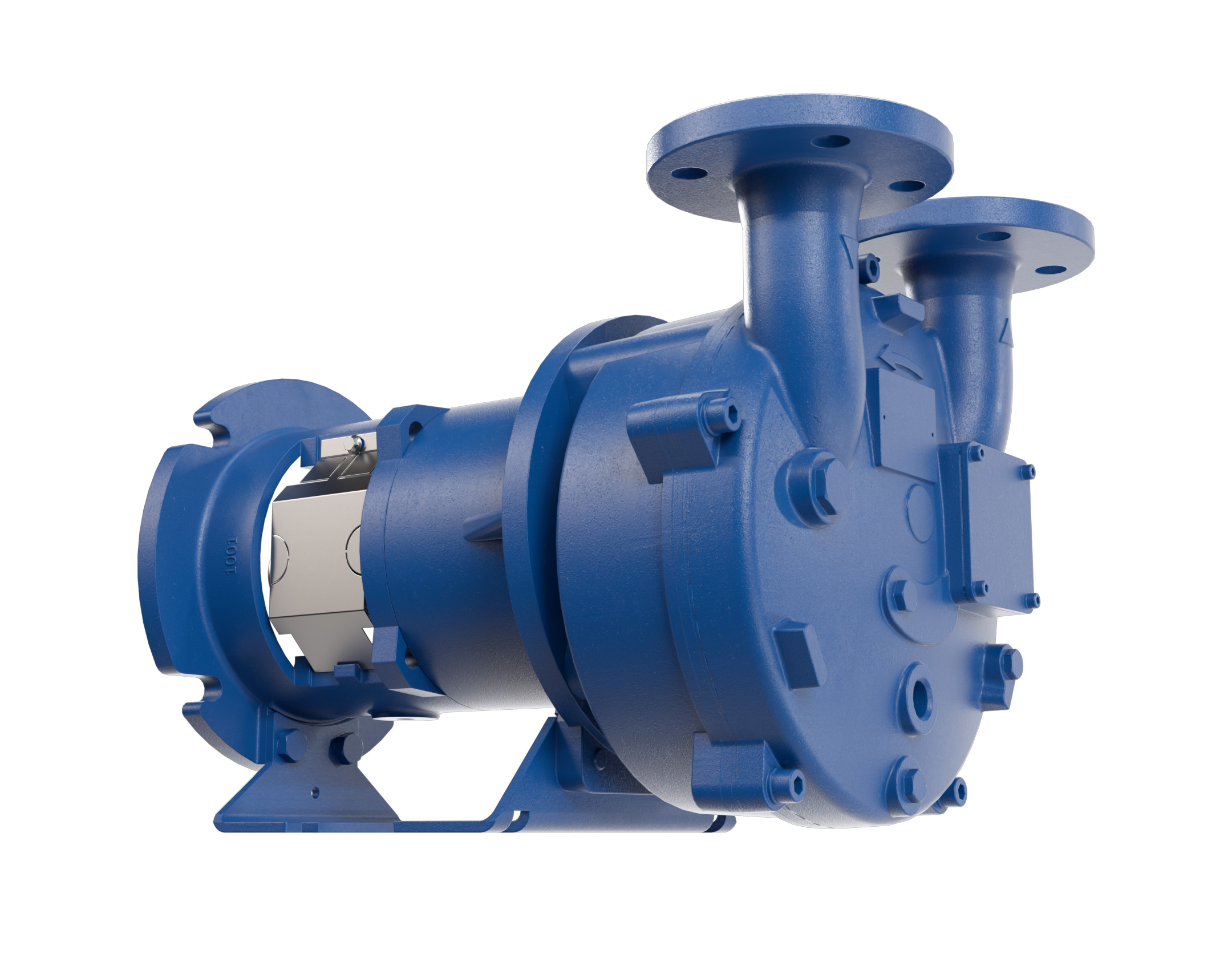

VSL: Lantern bracket with grease bearing support, flex coupling and standard B5 motor

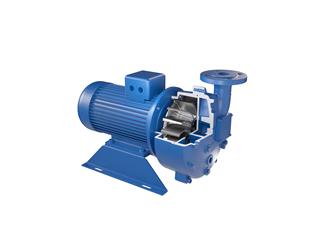

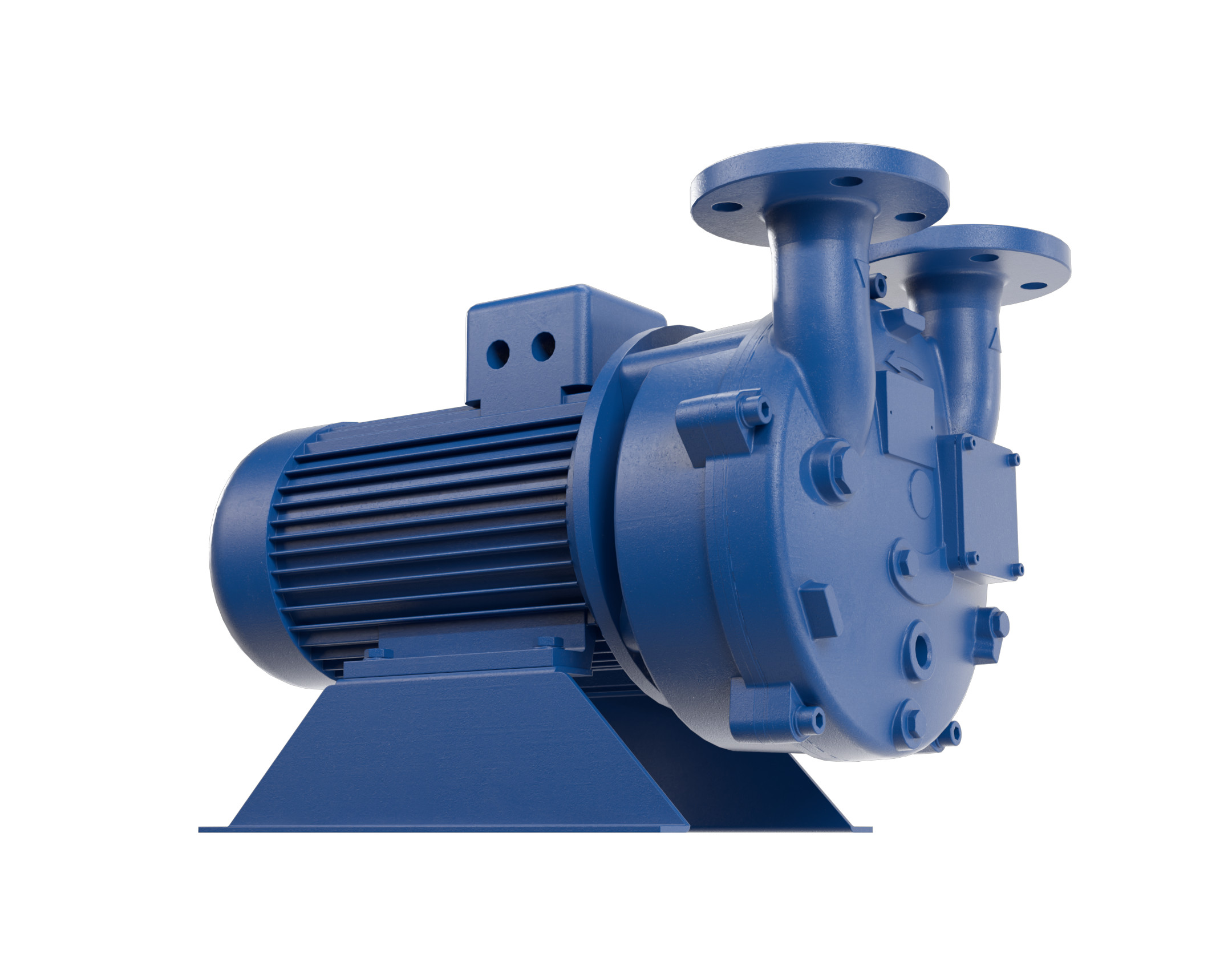

VSM: Close-coupled with standard IEC B3B5 electric motor

Unions

Standard: UNI EN 1092-1 PN 10
On request: ANSI 150
50Hz Curves
60Hz Curves
Manuals
Catalogues
