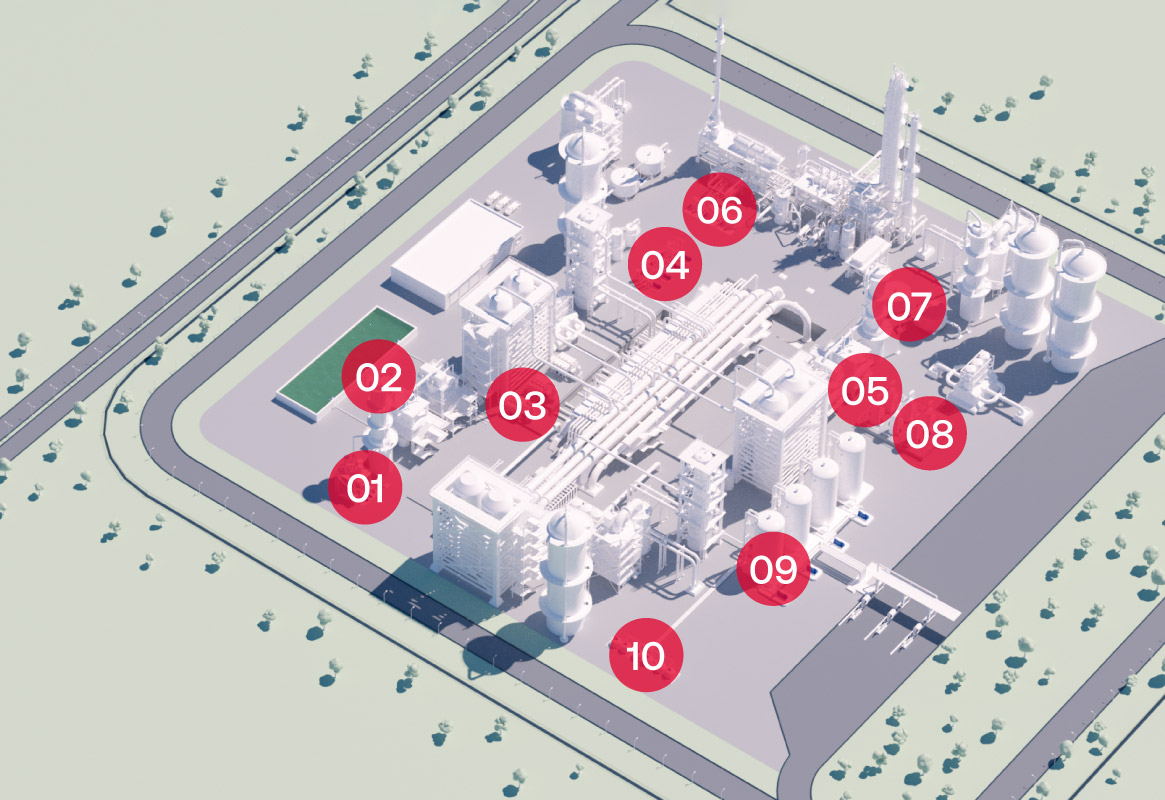

Chemical industry

Evaporation and concentration

Utility water recovery pit

Distillation

Ultrafiltration

Scrubber

Reactor recirculation

Dosing

Scrubber

Storage tanks

Underground tank chemical storage

Our work in the chemical industry

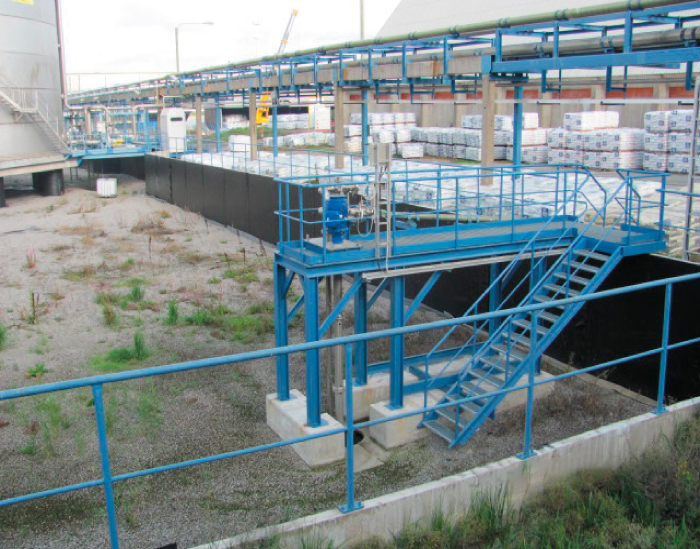

Sump unloading

The sump inside safety wall. Previously customer had installed submersible pumps but even if AISI316 was suitable for pumped liquid, pumps were short life because water nitric acid mixture, through the cable connection, went to the motor and destroyed the pumps. Now they are happy with this construction.

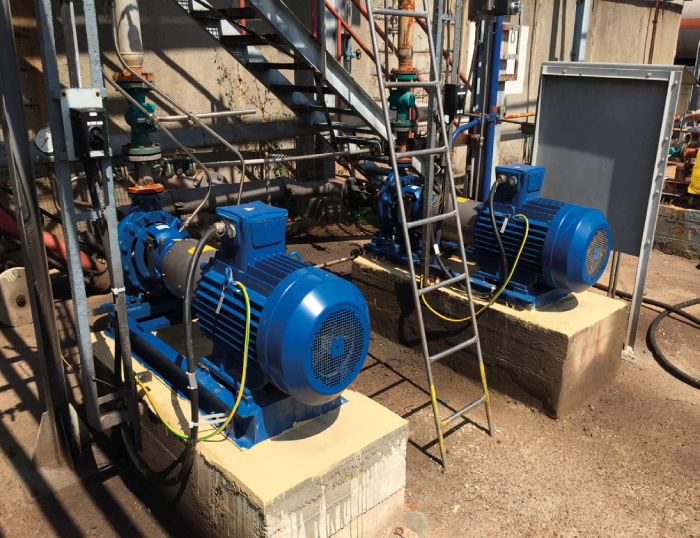

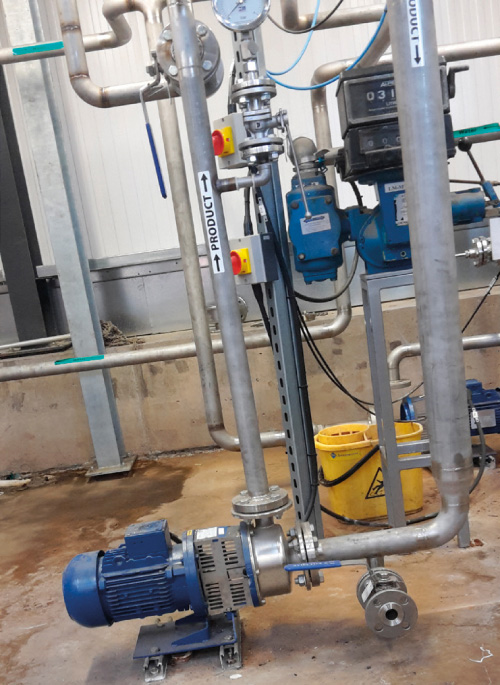

Chemical transfer pump

RD Chemical pumps are made from corrosion resistant materials including stainless steel to ensure that they are suitable for use with aggressive industrial fluids. When selecting a chemical pump, it is important that you have checked that it is compatible with the specific chemical composition that the pump is used for transferring.

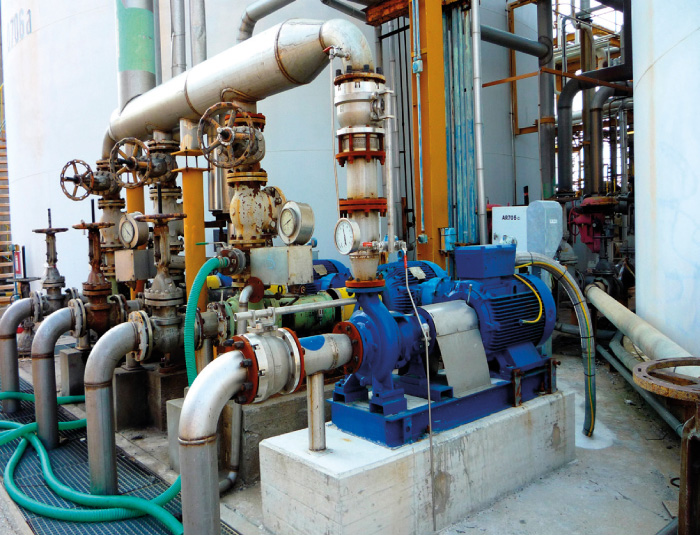

Chemical transfer pump

RD Chemical pumps are made from corrosion resistant materials AISI 904L to ensure that they are suitable for use with aggressive industrial fluids. When selecting a chemical pump, it is important that you have checked that it is compatible with the specific chemical composition that the pump is used for transferring.

Chemical transfer pump

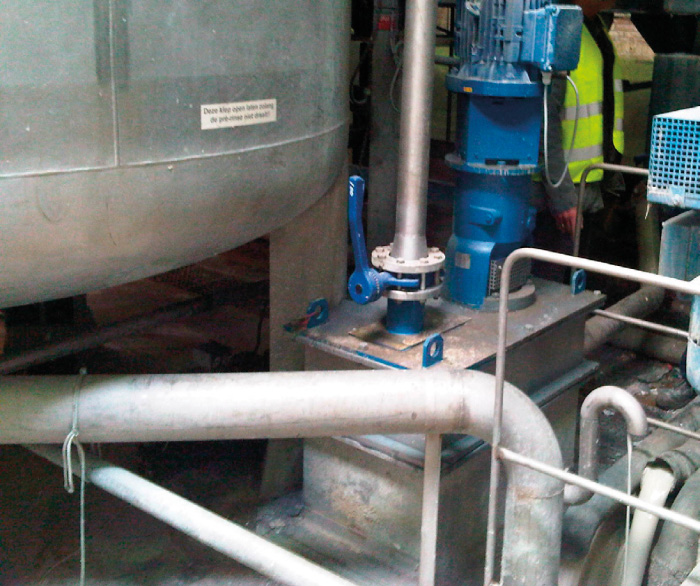

Pet flakes cleaning

Pumped liquid contains not only PET flakes but also foam. Using cantilever execution instead of horizontal chemical pump, the foam present in the liquid doesn’t stop the cleaning process of PET flakes coming from PET bottles. PET flakes are abrasive: pump’s body is in CA6NM with hardness around 350 HB. A key feature of cantilever pump is that there no bearings or bushings submerged therefore the pump can handle liquid with solids and operate dry.

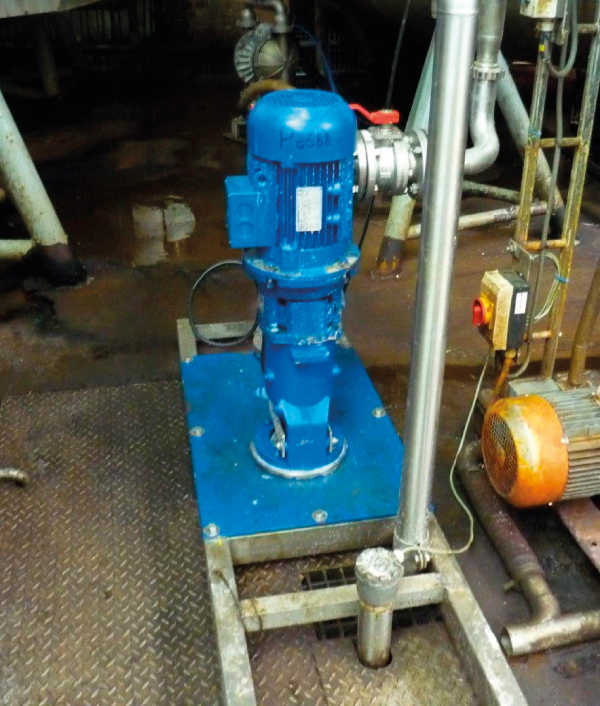

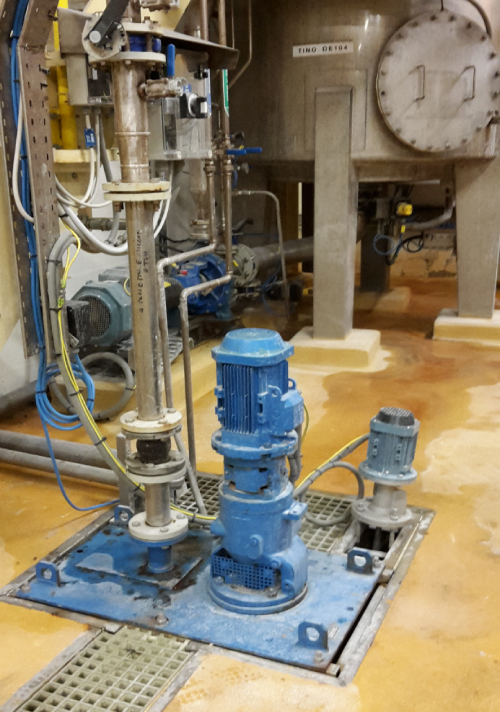

Sump pit drain pump

Pumps are usually installed inside sumps that are used to collect liquid overflow or chemical waste from industrial processes. The feature of these sumps is the variability of the liquid level contained in it: this level depends on the process and must be run by level probes that stop the pumps when the level is too low and put them in motion when the level is high. These numerous starts-stops can cause damages to the motors and pumps. The cantilever pumps are able to work dry and do not need to be stopped when the level is too low. They can work continuously without having to be run by level probes.

Sump pit drain pump

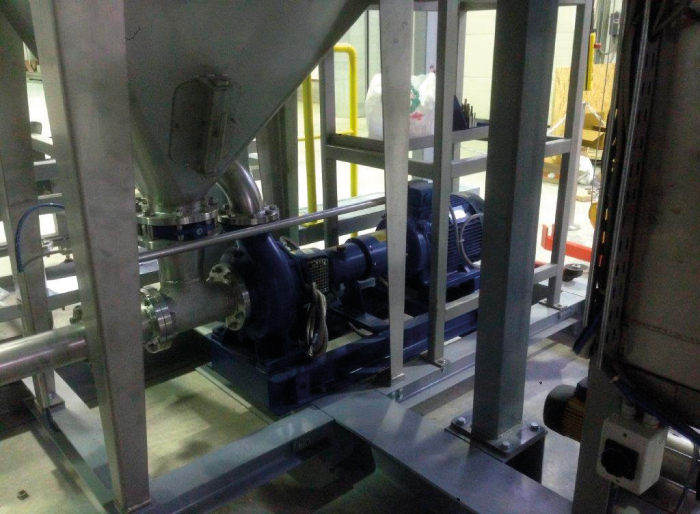

Chemical transfer pump

RC vortex impeller can pump liquid with a suspension of small solid particles without clogging problems. Back-to back seal arrangement allows the seals to work always in contact with clean liquids. Pumped liquid MEYCO SA160 is an high performance, alkali-free set accelerator for use in both wet and dry mix spraying processes.

Chemical transfer pump

RG chemical pumps with semi-open impeller can pump liquid with small suspended particles or crystals (up to 10%) without clogging problems. Back-to back seal arrangement allows the seals to work always in contact with clean liquids. Pumps are made from corrosion resistant materials including stainless steel to ensure that they are suitable for use with aggressive industrial fluids.

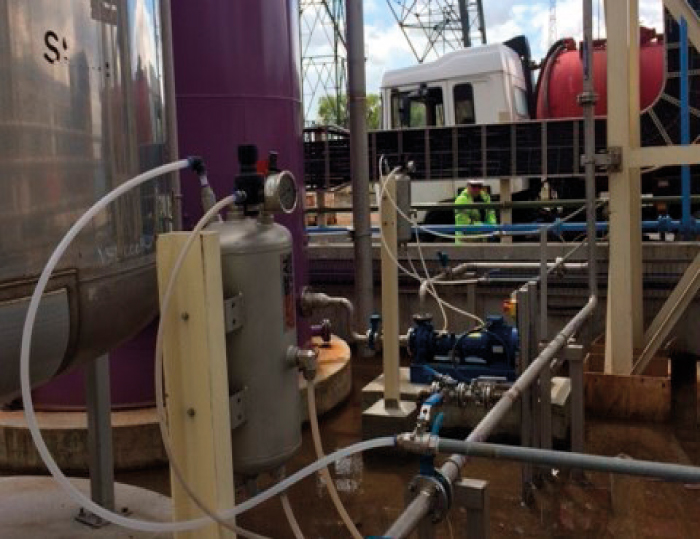

Chemical transfer pump

Heavy duty close-coupled pumps RS used in a pesticide company. Pumps are used for dosing solutions containing various chemicals with high viscosity (up to 500cP) and high s.g. (up to 1.5).
