    Technical Specifications

    Maximum flow rate: 12 m3/h
    Maximum head: 160 mwc
    Maximum pressure: 16 bar

    Materials

    Standard: Casing made in G250 Cast Iron, bronze impellers, Shaft made in AISI 420 SS
    On request: Shaft in stainless steel and special bushings.

    Hydraulic

    Self-Priming

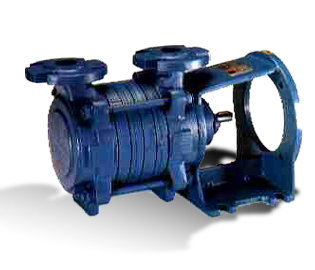

    RACM pumps

    Use

    Single or Multistage side-channel self-priming pumps with radial impellers. They are fit to handle clean liquids with no suspended solid matter and can be used for boilers feeding, surge tank plants, conveying systems for liquids containing gas, condensate extraction, fuel handling, etc.

    Construction Versions

    Unions

    50Hz Curves
    60Hz Curves
    Dimensions
    Cross Sections
    Manuals
    Catalogues
