Technical Specifications

Maximum flow rate: 45 m3/h
Maximum head: 300 mwc
Maximum pressure: 30 BAR
Maximum temperature: 140° C

Materials

Standard: Casing and diffusers made in GJL250 Cast Iron, shaft in AISI 420, bearing bushes in bronze.
On request: AISI 316 shaft and special bearing bushes.

Hydraulic

Closed impeller

TS pumps

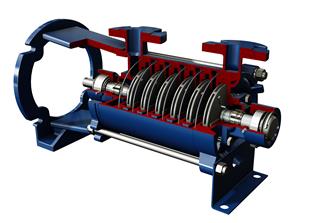

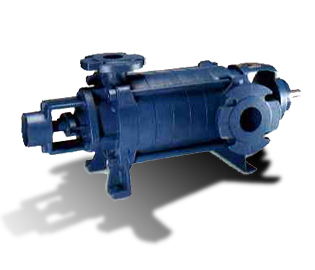

Multistage centrifugal pumps with closed impellers TS. Discharge sizes from DN 32 to DN 50. TS 31-32 range is only available with mechanical seal, TS 40-50 range is available both with mechanical seal and gland packing and cooling chambers are supplied as standard equipment.

Use

TS pumps can handle clean or slightly contaminated liquids. They are also used for boilers feeding, fire fighting plants, autoclaves, water supply systems, irrigation, washing plants, to pump hydrocarbons and whenever high pressures are required.

Construction Versions

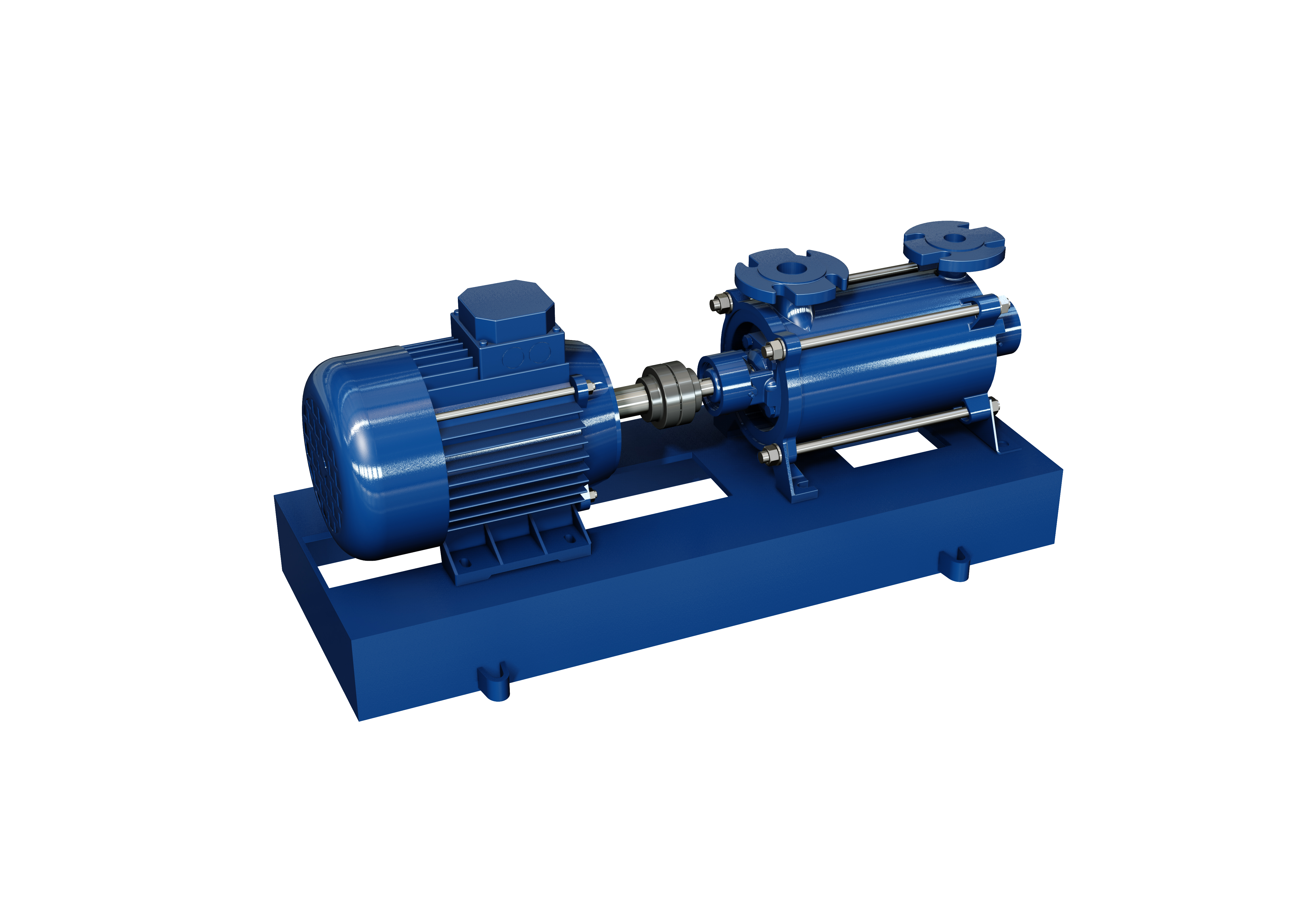

TSB - TSKB: Independent frame with oil lubricated bearings, with ball bearing and bearing bush (TSB) or with double bearing (TSKB).

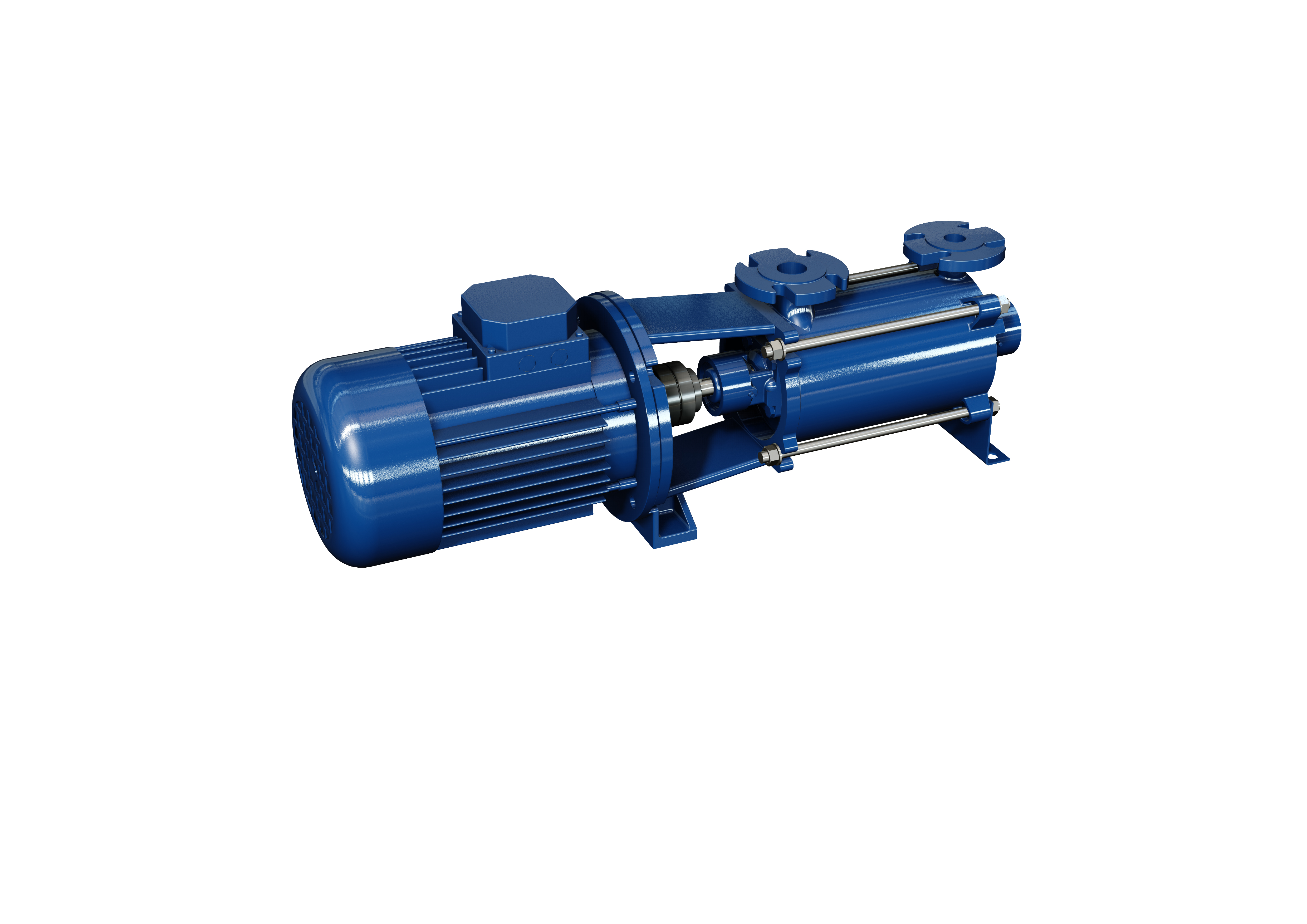

TSL - TSKL: Independent frame with oil lubricated bearings with lantern for coupling to flanged motors, with ball bearing and bearing bush (TSL) or with double bearing (TSKL).

Unions

Flange: PN 16 suction
Flange: PN 40 discharge
